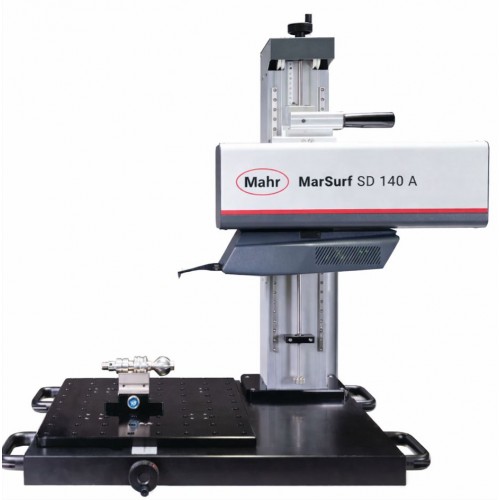

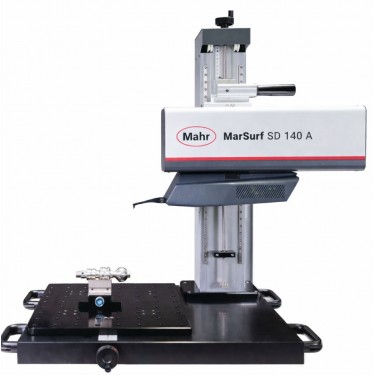

The 2150200 Mahr MarSurf SD 140 AG 11 Combined Roughness + Contour Measuring Station

The MarSurf SD 140 AG 11 is a compact, manual surface‑measuring station designed for shops and labs that need fine roughness and 2D contour measurement in a single setup. Its tactile probe system captures the complete surface profile in one stroke, and the software automatically separates roughness and contour for independent evaluation. This gives you fast, reliable results without switching instruments or repositioning the part.

A practical, operator‑friendly measuring station

The SD 140 AG 11 uses a manual 140 mm X‑axis, giving operators full control over positioning while maintaining excellent repeatability. The Z‑axis includes both quick and fine adjustment, making it easy to align the drive unit precisely to the workpiece. A manual 60 mm Y‑axis provides additional flexibility for part placement.

Two probe arm lengths are supported, allowing the system to handle both small features and larger profile elements:

• 10 mm measuring range with a 100 mm probe arm
• 25 mm measuring range with a 250 mm probe arm

This versatility makes the SD 140 AG 11 suitable for a wide range of precision components.

Fast probe changes and built‑in safeguards

The system features a tool‑free probe arm quick‑change mechanism, allowing operators to switch probe arms without recalibration. Electronic probe arm detection ensures the correct arm is recognized automatically, and the system selects the appropriate measuring force for each task. These safeguards reduce setup time and eliminate common operator errors.

Stable platform with flexible fixturing

390 × 450 mm support plate with a 50 mm hole grid, allowing a wide range of workpiece holders and clamps to be mounted quickly and securely. This layout supports repeatable setups and stable measurement conditions, even for small or irregular parts.

Software included

The SD 140 AG 11 comes with both EasyContour and EasyRoughness, providing full evaluation capability for contour geometry, roughness parameters, filtering, profile analysis, and reporting. A PC and monitor are included, making the system ready to use immediately.

Ideal applications

The SD 140 AG 11 is well‑suited for:

• Fine roughness measurement on turned, ground, and machined surfaces
• Contour and profile checks on radii, steps, chamfers, grooves, and sealing surfaces
• Quality labs needing a single instrument for both surface finish and functional geometry
• Production environments requiring repeatable, operator‑friendly measurement workflows
