The 2192104 MarSurf CD 140 AG 11 – Motorized Contour Measuring System - Contour + Roughness Capability is on sale at Gaging.com.

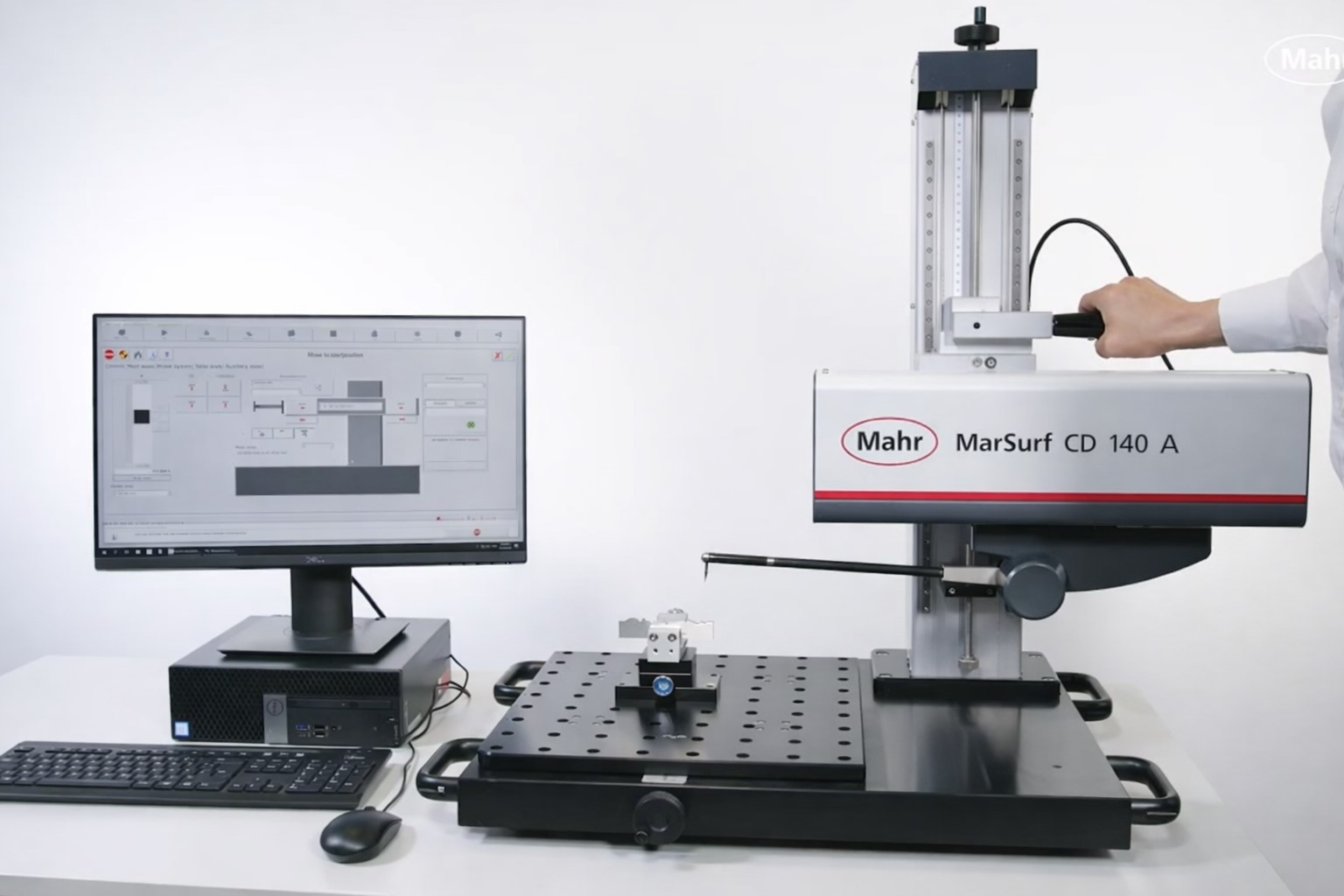

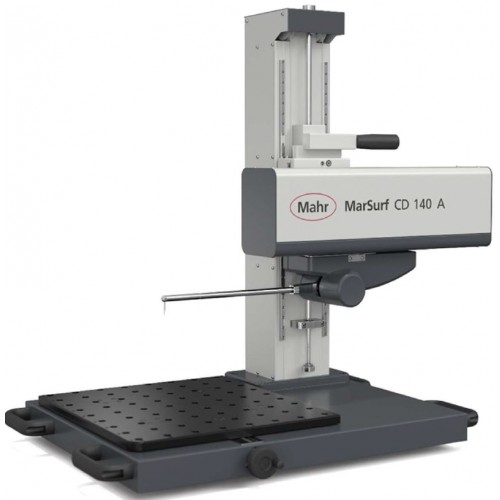

The MarSurf CD 140 AG 11 (2192104) is a motorized contour‑measurement workstation equipped with added roughness‑measurement capability. This configuration includes EasyContour, EasyRoughness, and a 5 µm roughness probe, allowing operators to evaluate contour, form, and general surface finish on a single platform.

Built on Mahr’s AG‑series motorized X‑axis driver, this system delivers smooth, automated contour tracing and reliable roughness measurement only for surfaces rougher than approximately 2 µm Ra.

Please Note: The AG driver is engineered primarily for contour measurement.  While it can perform roughness evaluation, it is not designed for fine surface‑finish work.

*Not recommended for fine finishes below 2 µm/80 micro inch Ra

Key Features

• Motorized X‑axis with 140 mm travel for automated contour tracing
• 70 mm measuring range for contour and roughness applications
• 5 µm roughness probe included
• EasyContour + EasyRoughness software installed
• Tool‑free magnetic stylus change system
• Electronic probe detection
• Automatic measuring‑force selection
• Defined start position for consistent setup
• Large 390 × 450 mm support plate with 50 mm hole grid
• PC + monitor included for a complete workstation
